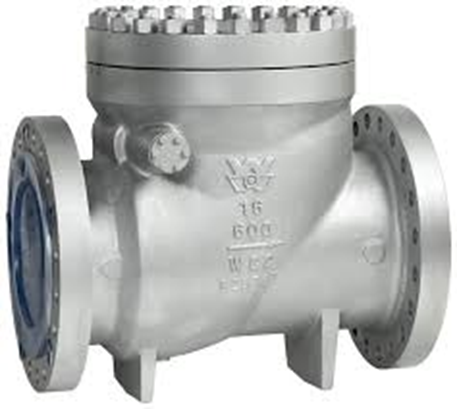

    Check Valve

    Check Valve

    A Check Valve is a non-return valve that allows fluid to flow in only one direction and prevents backflow. It operates automatically based on fluid pressure and does not require manual operation. When forward pressure is applied, the valve opens; if flow reverses, it closes automatically. Check valves help protect pumps, compressors, and pipelines from damage. They are widely used in water, oil, gas, and process systems.

    Application:

    A check valve (or non-return valve) is an automatic, self-actuating device installed in piping systems to allow fluid to flow in only one direction, preventing dangerous reverse flow (backflow). It protects pumps, compressors, and equipment from damage, maintains pressure, and prevents contamination in systems ranging from water, gas, and industrial processes to household applications like aquarium pumps.

    Class: 150#, 300#, 600#, 900#, 1500#, 2500#

    Design Standard: API 598, ISO 5208
    Size: 15 mm to 400 mm
    Materials:

    Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20 , LCB etc

    Trim : 13 % Cr, Stellite etc
    Ends: Flanged, Butt Weld , Wafer, Lined
    Operation: Automatic

    Testing Standard: API 598
